Description
Product Description

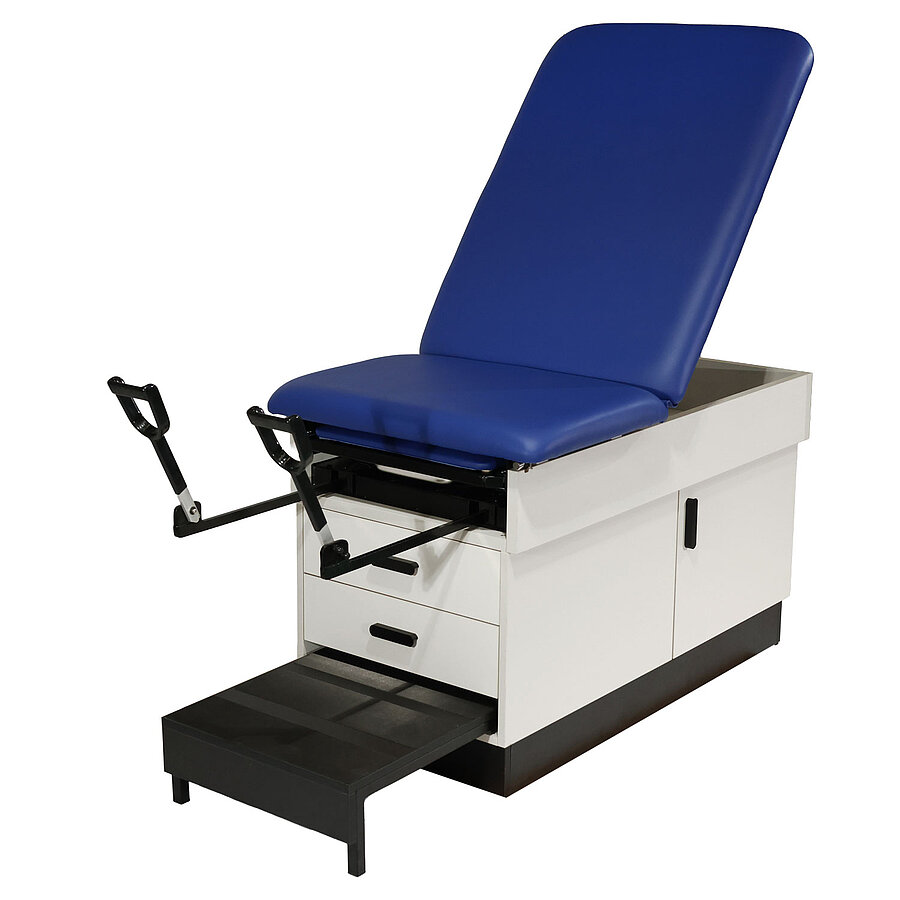

The VISBY Gynaecology Examination Chair combines comfortable patient positioning with practical features and integrated storage. Its compact cabinet design keeps important equipment close at hand without requiring additional storage furniture.
The generous padded seat and backrest feature a smooth PVC cover that is easy to clean and suitable for regular use in healthcare environments. Rounded padded edges provide additional comfort for the patient. Depending on the version, the upholstery is available in blue or black.
For different examination positions, the VISBY features a pneumatically adjustable backrest. It can be adjusted with one hand using a control lever, from an upright sitting position to a deeply reclined position. The seat can support up to 227 kg, while the backrest has a maximum load capacity of 160 kg.
Adjustable footrests on both sides provide flexible leg positioning. They can be set to four positions and pushed in or folded away when not in use to save space and keep the examination area easily accessible.
A pull-out step makes it easier to access the approximately 77 cm high seat. Anti-slip strips on the step provide additional grip. After use, the step can be pushed back into the base to save space.
Two soft-close drawers with automatic closing are located beneath the examination area. The upper drawer contains an integrated metal collection tray, while the lower drawer provides additional storage for consumables and examination supplies. A closed cupboard compartment with shelf provides further storage space. The cupboard doors feature a soft-close mechanism for controlled and quiet closing.
A couch roll holder mounted beneath the backrest allows couch roll to be used directly on the chair. The low-level plinth and enclosed base complete the compact design. The VISBY Gynaecology Examination Chair is supplied fully assembled.
Specifications
- Overall length: Approx. 145 cm
- Overall width: Approx. 74 cm
- Overall height: Approx. 77 cm
- Seat: Approx. 62 x 74 cm (L x W)
- Backrest: Approx. 82 x 74 cm (L x W)
- Seat height: Approx. 77 cm
- Upholstery cover: Smooth, easy-care PVC
- Upholstery colours: Blue or black
- Maximum seat load: 227 kg
- Maximum backrest load: 160 kg
- Backrest: Pneumatically adjustable (0-70°)
- Backrest control: Control lever
- Footrests: Fitted on both sides and adjustable to 4 positions
- Footrest storage: Pull-out and foldable
- Drawers: 2 with automatic closing
- Upper drawer: With integrated metal collection tray
- Lower drawer: Storage for consumables and examination supplies
- Cupboard compartment: 1 enclosed compartment with shelf
- Cupboard doors: With soft-close mechanism
- Step: Pull-out and fitted with anti-slip strips
- Couch roll holder: Beneath the backrest
- Base: Enclosed construction with low-level plinth
- Delivery: Supplied fully assembled
Technical Specifications
- Overall length: Approx. 145 cm
- Overall width: Approx. 74 cm
- Overall height: Approx. 77 cm
- Seat dimensions (L x W): Approx. 62 x 74 cm
- Backrest dimensions (L x W): Approx. 82 x 74 cm
- Seat height: Approx. 77 cm
- Maximum seat load: 227 kg
- Maximum backrest load: 160 kg
- Upholstery cover: PVC
- Available upholstery colours: Blue and black
- Backrest adjustment: Pneumatic via control lever
- Footrests: 2, adjustable to 4 positions and pull-out/foldable
- Drawers: 2 with automatic closing
- Cupboard compartment: 1 with shelf
- Cupboard doors: With soft-close mechanism
- Collection tray: Metal, integrated into the upper drawer
- Step: Pull-out, with anti-slip strips
- Couch roll holder: Beneath the backrest
- Plinth construction: Low-level
- Base: Enclosed
- Assembly status on delivery: Fully assembled
Scope of Delivery
- 1 x VISBY Gynaecology Examination Chair
- 2 x adjustable footrests
- 1 x metal collection tray
- 1 x integrated, pull-out step
- 1 x couch roll holder
- 1 x instructions for use
Please note that the VISBY Gynaecology Examination Chair is supplied fully assembled.
Article Number: T1711820 + T1711830 Category: Couches and Tables
