Description
Product Description

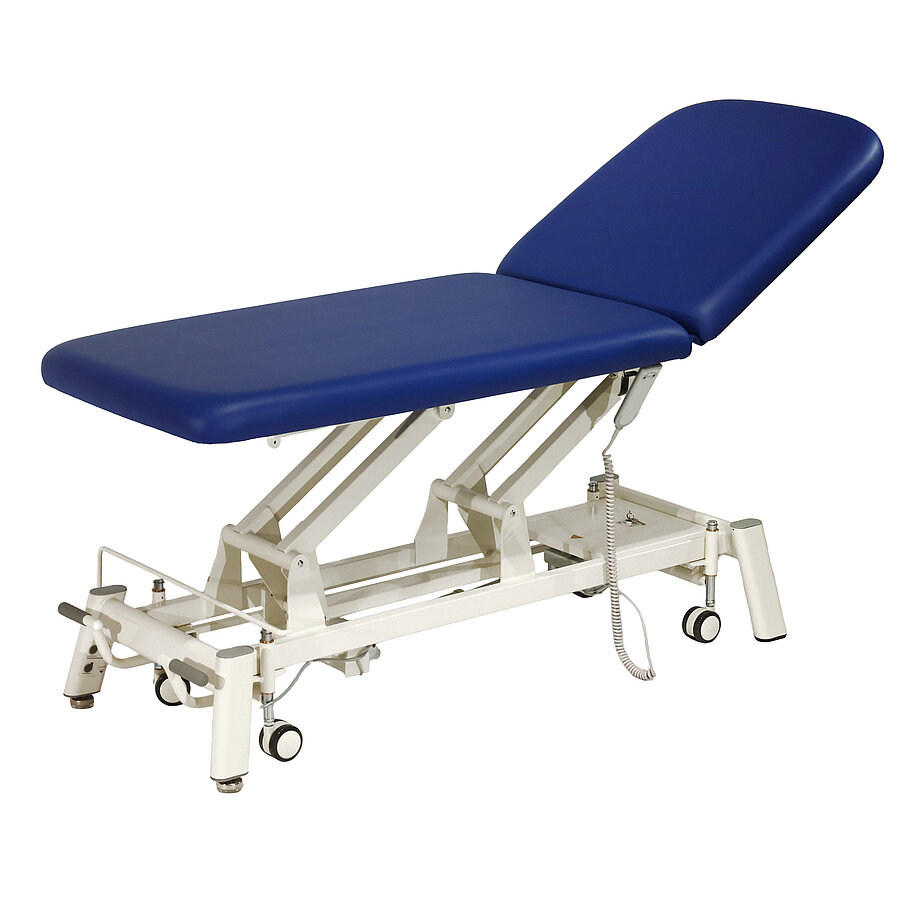

The NAMSOS Electric Treatment Table is suitable for examinations, therapeutic applications and treatments. Its electric height adjustment can be continuously adjusted from 50 to 95 cm, allowing the table to be set to different treatment situations and individual working heights. This supports an ergonomic working position when sitting or standing.
The table uses a Dewert electric lifting mechanism with a scissor-type lifting design for stable guidance of the lying surface. The height adjustment is conveniently controlled using the supplied hand controller.
The adjustable backrest allows patients to be positioned flexibly. The hydraulic adjustment mechanism enables the backrest to be positioned continuously from approximately -10° to 80°. This allows for different lying positions, raised upper-body positioning and treatments with the patient lying face down.
With a 68 cm wide and 198 cm long lying surface, the table provides ample space for a range of therapeutic applications. The 8 cm thick padding is made from high-density, firm foam, providing stable support while maintaining comfort. Rounded padded edges further enhance comfort. The PVC cover has an antibacterial surface and is suitable for regular cleaning in healthcare environments.
For flexible use, the NAMSOS Electric Treatment Table is equipped with four castors that can be activated together using a foot lever, making it easier to move the table within the treatment room. During use, the wide metal frame provides a stable base.
A couch roll holder mounted at the foot end allows couch roll to be used directly on the table. The power supply can also be switched on and off using a key. The NAMSOS Electric Treatment Table is available with dark blue, white or black upholstery and is supplied fully assembled.
Specifications
- Overall length: 198 cm
- Lying surface width: 68 cm
- Height adjustment: Electric and continuous from 50 to 95 cm
- Drive: Dewert electric lifting mechanism with scissor-type construction
- Height adjustment control: Hand controller
- Padding thickness: 8 cm
- Padding material: High-density, firm foam
- Padding cover: PVC with antibacterial surface
- Padded edges: Rounded
- Backrest adjustment: Hydraulic and continuous
- Backrest adjustment range: Approx. -10° to 80°
- Maximum lifting capacity: 200 kg
- Maximum working load: 272 kg
- Product weight: 67 kg
- Frame: Sturdy metal construction with a wide base
- Mobility: 4 castors with joint activation via foot lever
- Couch roll holder: Mounted at the foot end
- Power supply: Can be switched on and off using a key
- Upholstery colours: Dark blue, white or black
- Delivery: Supplied fully assembled
Applications
- General and specialist medical practices
- Physiotherapy and rehabilitation
- Massage and beauty treatments
- Diagnostic examinations and treatments
- Manual therapy
- Pain therapy
- Preventive healthcare
- Treatments with patients lying on their back or front
- Therapeutic applications with different sitting and lying positions
- Applications requiring an individually adjustable working height
Technical Specifications
- Overall length: 198 cm
- Lying surface width: 68 cm
- Height adjustment: Electric, continuous from 50 to 95 cm
- Drive: Dewert electric drive with scissor-type lifting mechanism
- Padding thickness: 8 cm
- Padding material: High-density, firm foam
- Padding cover: PVC, antibacterial surface
- Backrest adjustment: Hydraulic, continuous from approx. -10° to 80°
- Maximum lifting capacity: 200 kg
- Maximum working load: 272 kg
- Product weight: 67 kg
- Frame material: Metal
- Mobility: 4 castors with joint activation via foot lever
- Control element: Hand controller for electric height adjustment
- Couch roll holder: At the foot end
- Safety function: Power supply can be switched on and off using a key
- Available upholstery colours: Dark blue, white and black
Scope of Delivery
- 1 x NAMSOS Electric Treatment Table
- 1 x hand controller for operating the electric height adjustment
- 1 x couch roll holder, mounted on the frame
- 1 x key for switching the power supply on and off
- 1 x instructions for use
Please note that the NAMSOS Electric Treatment Table is supplied fully assembled.
Article Number: T1711760 + T1711770 + T1711780 Category: Couches and Tables
