Description
Product Description

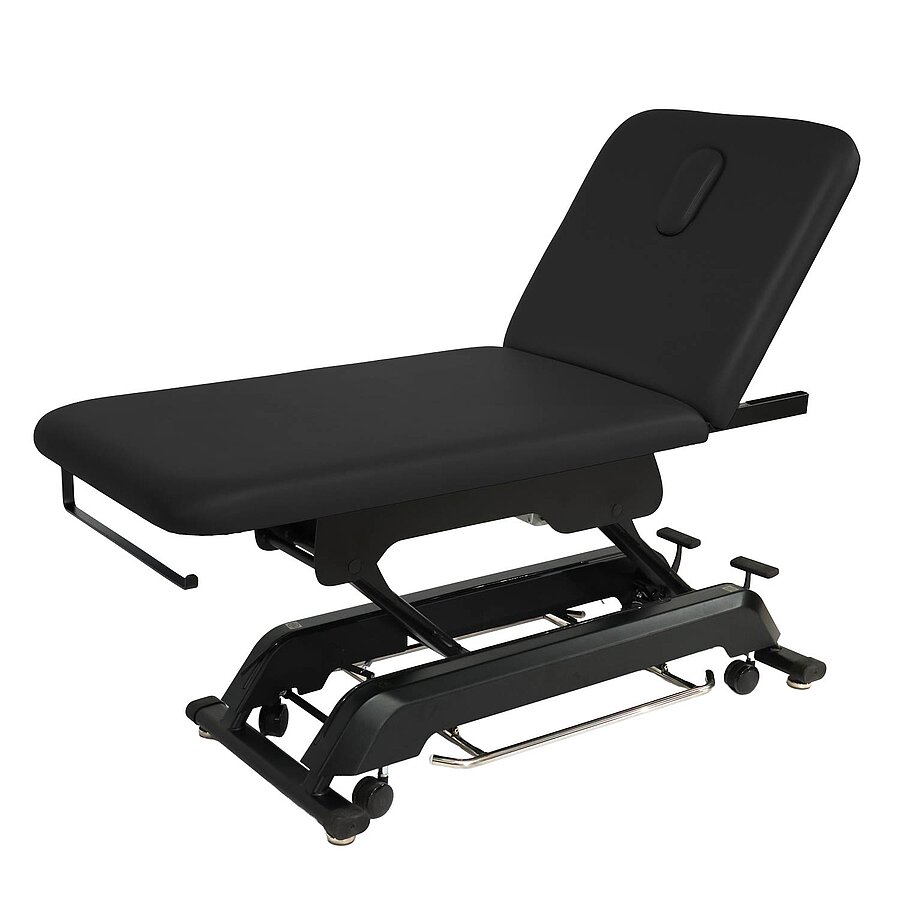

The BRYNE Electric Examination Couch offers flexible adjustment for a range of examination and treatment situations. Its electric height adjustment allows the couch height to be continuously adjusted from 49 to 93 cm, making it possible to set the working height to suit the application and supporting an ergonomic working position when seated or standing.
The height adjustment is controlled using the stainless steel Walk Free foot control. This allows the couch height to be adjusted with the foot while keeping both hands free for examination or treatment.
The two-section lying surface consists of a 125 x 74 cm main section and a separately adjustable back/head section measuring approximately 72 x 74 cm. The back/head section can be adjusted pneumatically from -70° to 30°, allowing different patient positions. A face opening measuring approximately 23 x 11 cm is integrated for treatments in the prone position. When not required, it can be closed with the removable insert.
The entire lying surface has 8 cm thick padding and a smooth PVC cover. Rounded corners and edges support comfortable patient positioning. The padding is available in black or dark blue, depending on the version.
The sturdy black metal frame features an anti-pinch safety system designed to reduce the risk of trapping in moving parts of the construction. The BRYNE Electric Examination Couch has a maximum load capacity of 272 kg.
Four integrated castors allow the couch to be moved within the examination or treatment room. They can be extended and retracted together using a foot lever, making it easy to move the couch when required and position it securely afterwards.
A vertically mounted couch roll holder at the foot end provides convenient access to examination couch paper. The BRYNE Electric Examination Couch is supplied fully assembled and can be prepared for use immediately after installation.
Specifications
- Overall length: 198 cm
- Lying surface width: 74 cm
- Height adjustment: Electric, from 49 to 93 cm
- Height adjustment control: Stainless steel Walk Free foot control
- Lying surface: Two sections
- Main lying surface: 125 x 74 cm
- Back/head section: Approx. 72 x 74 cm
- Back/head section adjustment: Pneumatic
- Back/head section adjustment range: -70° to 30°
- Padding thickness: 8 cm
- Upholstery: PVC with smooth surface
- Padded edges: Rounded
- Face opening: Approx. 23 x 11 cm
- Closing insert: Removable
- Frame material: Metal
- Frame colour: Black
- Safety system: Anti-pinch system to help prevent trapping in moving parts
- Mobility: 4 integrated castors
- Castor mechanism: Extended and retracted together using a foot lever
- Couch roll holder: Vertically mounted at the foot end
- Maximum load capacity: 272 kg
- Upholstery colours: Black or dark blue
- Delivery: Fully assembled
Applications
- General and family medicine practices
- Physiotherapy and rehabilitation
- Orthopaedic examinations and treatments
- Chiropractic and manual therapy
- Dermatological examinations and treatments
- Cosmetic and aesthetic treatments
- Pain therapy and acupuncture
- Preventive examinations and check-ups
- Outpatient clinics and day hospitals
- Examinations and treatments in supine and prone positions
Technical Specifications
- Overall length: 198 cm
- Lying surface width: 74 cm
- Electric height adjustment: 49 to 93 cm
- Foot control: Stainless steel “Walk Free” system
- Main lying surface dimensions: 125 x 74 cm
- Back/head section dimensions: Approx. 72 x 74 cm
- Back/head section adjustment: Pneumatic
- Back/head section adjustment range: -70° to 30°
- Padding thickness: 8 cm
- Upholstery: PVC
- Face opening: Approx. 23 x 11 cm
- Face opening closing insert: Removable
- Frame material: Metal
- Frame colour: Black
- Safety system: Anti-pinch
- Number of castors: 4
- Castor function: Extended and retracted using a foot lever
- Couch roll holder: Vertically mounted at the foot end
- Maximum load capacity: 272 kg
- Product weight: Not specified
- Available upholstery colours: Black and dark blue
- Assembly status on delivery: Fully assembled
Scope of Delivery
- 1 x BRYNE Electric Examination Couch
- 1 x stainless steel Walk Free foot control
- 1 x removable closing insert for the face opening
- 1 x vertical couch roll holder at the foot end
- 1 x instructions for use
Please note that the BRYNE Electric Examination Couch is supplied fully assembled.
Article Number: T1711740 + T1711750 Category: Couches and Tables
